Trailer Hitch Guide: Receiver, Ball, Wiring, Controller, WDH

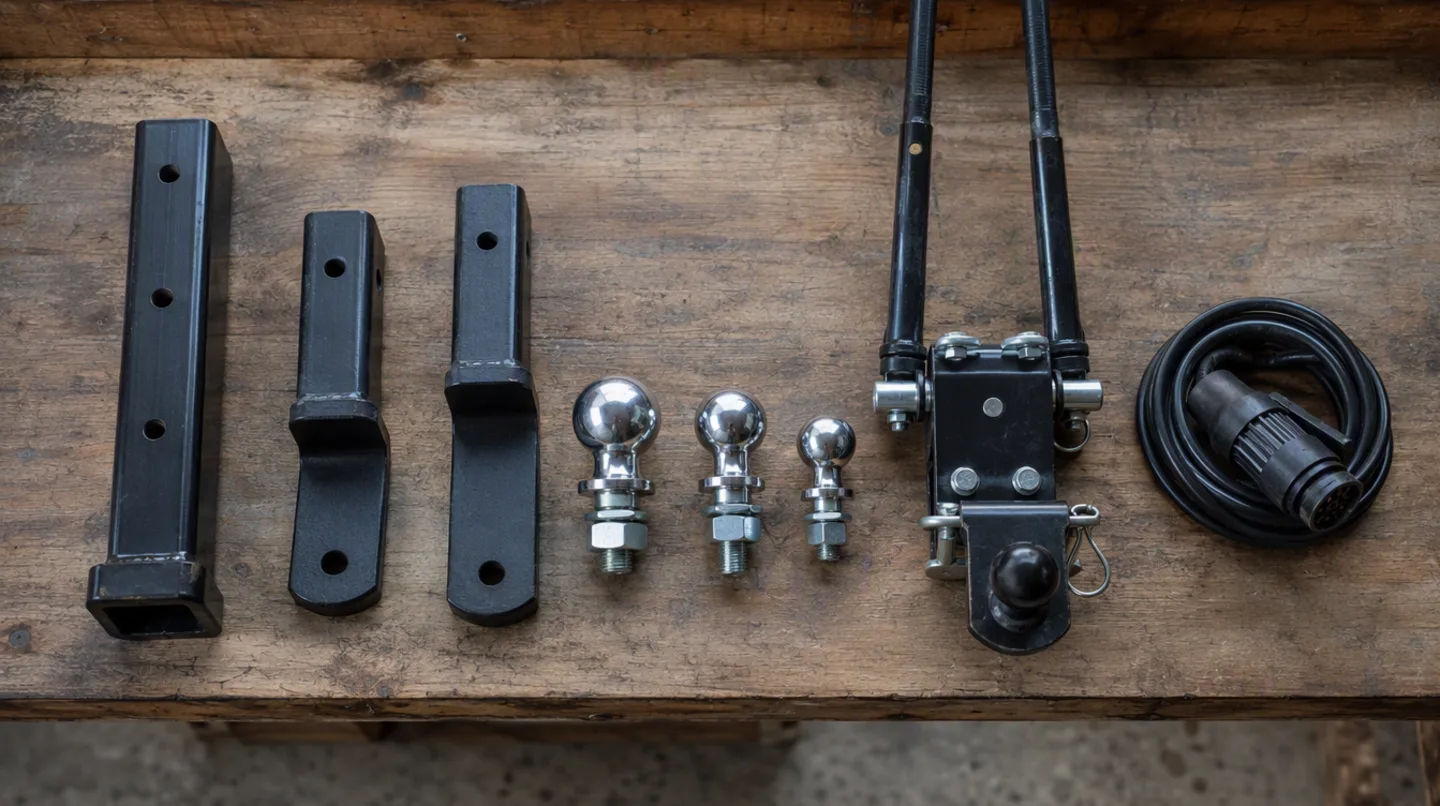

A towing setup is a chain of separately rated parts: the vehicle's own tow rating, the receiver welded to it, the ball mount that slides in, the ball bolted to that, the coupler that drops over it, and — separately — the payload the vehicle can carry. CURT states the rule plainly: > The overall towing capacity is only as strong as the lowest-rated component. That sounds obvious and is routinely ignored. A truck rated to tow 13,000 lb with a Class 3 receiver rated to 8,000 lb and a ball rated to 6,000 lb is a 6,000 lb setup. Fitting a bigger ball does not help if the receiver is the limit; fitting a bigger receiver does not help if the ball is. And none of those six numbers is usually the one that stops a family. Payload normally runs out first, because the trailer's tongue weight is carried by the tow vehicle and competes with your passengers and luggage for the same allowance. Settle that before you shop for hardware — the payload vs towing capacity guide and Can I Tow This? cover it. This guide takes the six hardware decisions in the order you actually make them.

The receiver is the part bolted or welded to the vehicle. Hitches are sold by class, I through V, and the class reliably tells you one thing: the size of the square opening. Now the part most charts leave out. Those capacities are CURT's, and other manufacturers publish different figures for the same class number. Draw-Tite sells a Class III hitch, part number 76919, rated at 3,500 lb GTW / 350 lb TW — against CURT's Class 3 figure of 10,000 lb / 1,000 lb, at the same 2" receiver opening. Both are correctly labelled. They are nearly a factor of three apart. Draw-Tite alone lists Class 3 hitches at 2,000, 3,500 and 4,500 lb GTW, and CURT qualifies its own Class 3 number with "depending on the specific vehicle and application". So the class is best understood as an industry convention about the receiver opening, not a rating. The consequence is simple: read the label or sticker on the hitch itself, which carries that specific part's rating. Never plan from a class chart. Both CURT and Draw-Tite state they test to SAE J684, and Draw-Tite additionally names VESC Regulation V-5 for hitch balls, but conformance to a test standard is not the same as a shared rating scheme. More detail in the hitch class and ball size guide.

The ball mount is the removable bar that slides into the receiver. It exists to put the ball at the right height, because a trailer should tow level. A trailer nose-high shifts weight off the tongue and towards the rear, which is the classic recipe for sway; nose-low overloads the tongue and the vehicle's rear axle. Measure two things on level ground: the height from the ground to the top of the receiver opening, and the height from the ground to the bottom of the trailer's coupler when the trailer is level. The difference is the drop (or rise) you need. Ball mounts are sold by that figure. The shank is the bolt the ball sits on, and it must match the ball's hole. Draw-Tite publishes three sizes with their torque figures: Those are not hand-tight numbers. A ball that works loose on its shank is a separation waiting to happen, and 450 ft-lb needs a proper torque wrench and a breaker bar. Check the nut periodically — it is on the walk-around list for a reason. Two habits worth building. Pin the ball mount into the receiver with its hitch pin and a clip or lock, because a pin can walk out on a rough road. And if the mount rattles in the receiver, that movement is wear; an anti-rattle device or a tightening wedge quiets it and slows the wear.

Two independent facts live on every tow ball, and confusing them is a common and dangerous error. Diameter must match the coupler exactly. The required size is stamped on the coupler handle or body — Draw-Tite says so explicitly — and both CURT and Draw-Tite instruct that the ball diameter must match it. The failure people fear is a large coupler on a small ball, which will not close. The one that actually hurts is a 2" coupler dropped onto a 1-7/8" ball: it can appear to latch, tow perfectly well out of the driveway, and lift off over a bump because the ball is too small to fill the socket. Capacity is separate and stamped separately. CURT's published ranges by diameter: Note the overlap. A 2" ball can be rated anywhere from 3,500 to 12,000 lb, so knowing the diameter tells you nothing about the rating. Read the stamping on the ball's crown. If the latch closed suspiciously easily, stop and check both stampings before you move.

Two connectors cover most towing. What separates them is not just pin count. The 4-way flat carries lights only. Jayco states it plainly: the 4-way harness "is not wired to operate electric brakes." Its four wires are: The 7-way RV blade adds three circuits the 4-way does not carry. Subtracting GM's two published connector lists gives exactly those three: reverse lamps, battery feed and electric brakes. And here the guide has to disappoint you: on the 7-way, wire colour is not reliable. Three manufacturer sources give three different colour maps for the same connector. Only white for ground and blue for brakes survive all three. Two of the collisions are genuinely dangerous. Black is the battery charge line to Jayco and the brake output to Big Tex. Red is 12 V power to Big Tex and stop-and-left-turn to Jayco. It gets worse: one current manual contradicts itself. In the same 2027 Jayco towable manual, yellow is left-turn on the 4-way page and back-up on the 7-way page; green is right-turn on one and running lamps on the other. And Big Tex prints, on its own wiring diagram, "DISREGARD COLOR NAMES MOLDED INTO PLUG". What is consistent is physical position. Comparing GM's receptacle figure with Jayco's plug figure contact by contact, all seven functions land on the same physical contact, oriented by the connector's keyway rather than by any printed number. Pin numbers are not an industry standard either — GM's 1–7 are callouts on GM's own illustration, and Jayco and Big Tex number nothing at all. So the honest instruction is: do not wire a 7-way from a colour chart, including this one. Use the diagram for your specific vehicle and trailer, and confirm every circuit with a test light or multimeter before you connect them. On the 4-way, by contrast, the colour convention above did hold across every source checked. The 7-way also supplies a common ground and a 12 V charge line for the trailer's auxiliary battery, which matters because the breakaway switch does nothing without a charged battery. Wire gauges in a typical 7-way cable are 10 gauge for black and white, 12 gauge for blue, and 14 gauge for the rest.

If the trailer has electric brakes, something in the cab has to operate them. Dexter divides controllers into two types, and the distinction is worth understanding before you buy. Time-delayed (time-controlled) units apply a preset amount of braking on a ramp, regardless of how hard you are actually stopping. Dexter is blunt about them: they "do not provide proportional modulation" and "tend to be inexpensive but not the best choice for optimum braking." A controller that "jumps immediately to a high voltage output" produces "harsh brakes and potential wheel lockup." Inertia (proportional) units sense the vehicle's actual deceleration — by accelerometer or a pendulum sensor — and modulate the trailer brakes to match. Dexter describes them as offering "the most desirable braking effect"; Redarc puts it more simply: the harder the vehicle brakes are applied, the harder the trailer will brake. The target behaviour is roughly 2 V at first pedal touch, rising to 12 V under hard braking. Electric trailer brakes are electromagnetic rather than hydraulic. Current energises a magnet that grips the rotating drum, and that grip levers the shoes outward. More current, more grip. The manual override lever, and a conflict worth knowing about. The lever applies the trailer brakes without the tow vehicle's brakes. Dexter notes that manual override is required by law, and Ford and GM publish the same two uses for it: setting gain during setup, and testing that the trailer brakes actually work before you set off. Whether it should also be used to correct sway is disputed between manufacturers. Redarc, which makes controllers, says its lever is "designed to be used when the trailer brakes need to be applied without the vehicle brakes, such as correcting trailer 'sway' whilst traveling." Ford's F-150 owner's manual says the opposite, in a warning that names the practice directly: > Only use the manual control lever for proper adjustment of the gain during trailer setup. Misuse, such as application during trailer sway, could cause instability of trailer or tow vehicle. Ford gives the mechanism on the same page: the controller "does not provide anti-lock control of the trailer wheels," so a manual application can lock them. GM sits in between, permitting the lever to "request additional trailer braking at any time" without ever naming sway. Follow the manual for the vehicle you are driving, and see what causes trailer sway for what all of them do agree on. Check whether your truck actually has one. For model year 2023 Ford published a factory Trailer Brake Controller as standard on Super Duty F-250/F-350/F-450 and Chassis Cab, but only included with a trailer tow package on F-150, F-150 Lightning, Ranger, Maverick and the SUVs. It is entirely possible to take delivery of a new half-ton without one. Setting gain is covered in the brake controller guide, with a starting figure from the brake gain calculator.

A weight distribution hitch uses spring bars to lever load off the tow vehicle's rear axle and back onto its front axle and the trailer's axles. Reese describes the goal as distributing the trailer's weight evenly between the trailer axles and the tow vehicle axles. The point is restoring steering and braking authority to a vehicle whose nose has lifted. The most reliable answer is your own vehicle's manual, because manufacturers publish two separate ratings. Ford's towing guide gives each vehicle a weight-carrying rating and a higher weight-distributing one: Read the F-150 row again: without a weight distribution hitch, Ford rates it to 5,000 lb. The headline five-figure tow rating assumes one is fitted. Ford states the hitch is "required for certain Class III and all Class IV applications." Ram's guidance sets the break at 5,000 lb — not required below, required above. Third-party rules of thumb exist but are not universal. Andersen publishes "use one when your trailer weighs more than half your tow vehicle's GVWR" — note the denominator is GVWR, not scale weight. Equal-i-zer's own explainer contains no numeric threshold at all. Treat these as guidance and your manual as the answer. Setting one up: restore half the drop, not all of it. Ford publishes a Weight Distribution Correction Factor of 50% for the F-150, Lightning, Raptor, Expedition and Super Duty. Measure the front fender lip height unhitched (H1), hitch the trailer and measure again (H2), then tension the bars until you have recovered half the difference. Ford's own worked example: 37" unhitched, 38" hitched, target 37.5". Over-tensioning removes too much weight from the rear axle, and Andersen warns that can reduce rear tyre traction. Two cautions. Ford lists WD as "Not Required" for the Mustang, Bronco Sport, Transit Connect, Edge, Escape, Bronco, Explorer, Maverick and Ranger, and "Use Not Recommended" for the Transit — so more is not automatically better. And Andersen states you cannot use weight distribution with surge brakes: the forward pressure permanently engages them. The full decision is in do I need a weight distribution hitch.

Work the chain in order and write each number down: 1. Vehicle — tow rating and, more importantly, the payload on the door placard. 2. Receiver — the rating on the hitch's own label, not the class chart. 3. Ball mount — enough drop or rise to tow level; shank torqued to spec. 4. Ball — diameter matching the coupler stamping; capacity stamped on the crown. 5. Wiring — 7-way if the trailer has brakes or a battery; test every circuit. 6. Controller — proportional if you are choosing; gain set on a quiet road. 7. Weight distribution — per your manual's weight-carrying vs weight-distributing ratings. The lowest number in that list is your real capacity. Then confirm the plan survived contact with reality. Loaded tongue weight is the number people most often guess at and most often get wrong, and a public scale settles it — weighing at a CAT scale covers the three-pass method, and CAT's published price is 15.25 for a first weigh and5.25 for a re-weigh on the same trip. The tongue weight calculator gives you a planning figure to check it against. With the hardware settled, the remaining questions are procedural: how to hitch a trailer for the coupling sequence, and the first-time towing checklist for everything between the dealer lot and your first fifty miles.
