Trailer Brake Controller Guide: Types, Wiring and Which You Need

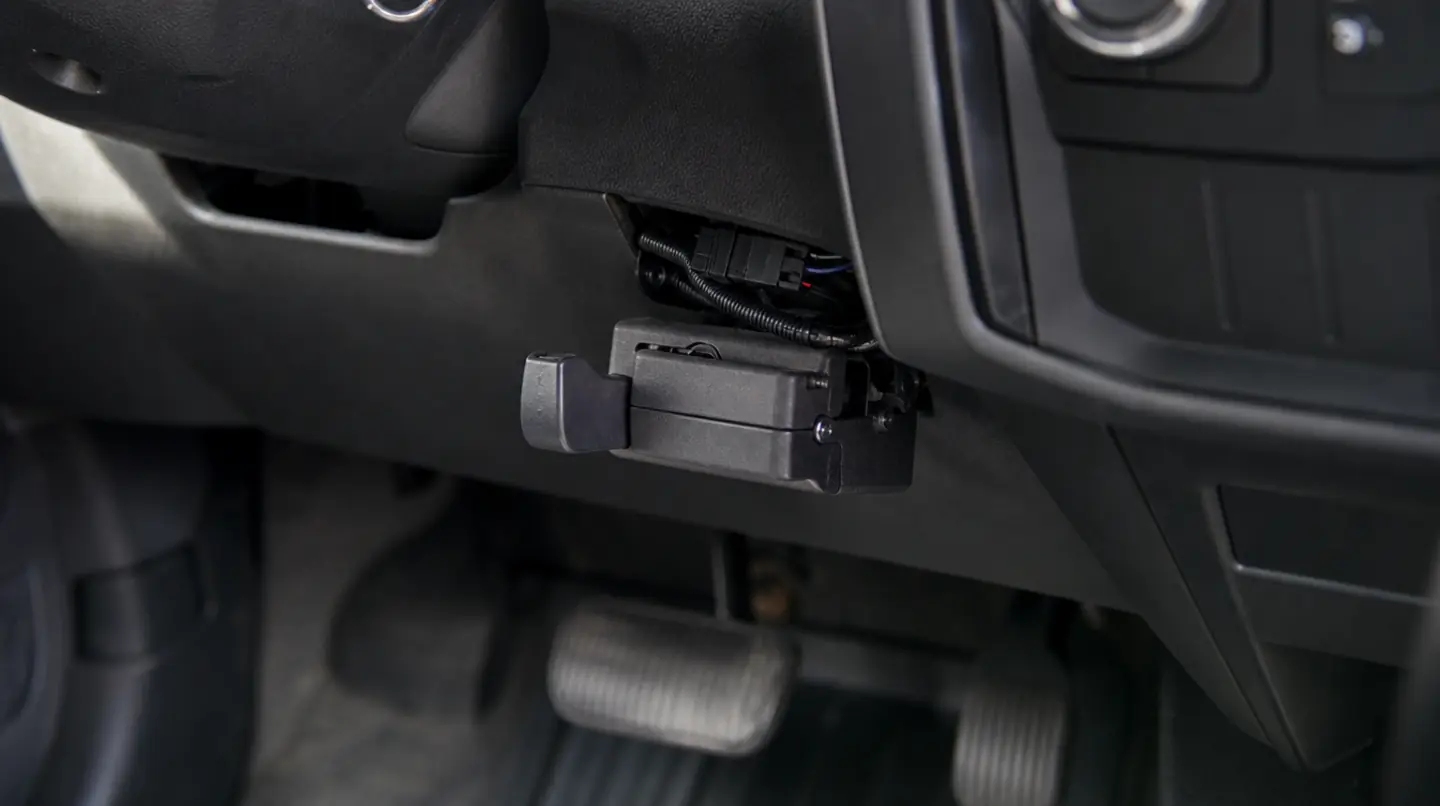

If your trailer has electric brakes, yes — the trailer cannot brake without it. A brake controller is the device in the tow vehicle that sends power to the trailer's brake magnets. Without one, the trailer has brakes it cannot operate. Three things to establish, in order: 1. Does your trailer have electric brakes? Most travel trailers, car haulers and utility trailers above about 3,000 lb do. Most boat trailers instead use surge brakes, which are self-actuating and need no controller at all. 2. Does your tow vehicle already have a controller? Do not assume a new truck does — see below. 3. Does it have a 7-way connector? A 4-way flat cannot carry a brake signal. Whether your trailer is legally required to have brakes at all is a separate, state-by-state question — the thresholds are in the trailer brake laws by state guide, and the brake law checker answers it for your weight and state.

Dexter — the largest North American trailer axle and brake manufacturer — names them plainly: "There are two basic types of In-Cab Electronic Brake Controllers, Inertia and Time Controlled. Inertia based controllers create a small bias braking force when activated and modulate braking forces of the trailer relative to the braking reaction created by the tow vehicle, offering the most desirable braking effect." Proportional (inertia-sensing) controllers measure how hard the tow vehicle is actually decelerating — with an accelerometer, or on older units a pendulum — and apply the trailer brakes to match. Brake gently and the trailer brakes gently. Ford describes its own integrated unit the same way: it powers the trailer brakes "with an output proportional to the towing vehicle's brake pressure." Time-based controllers ramp the output up over a preset interval once the brake signal arrives, regardless of how hard you are actually braking. Dexter is direct about the consequence: "Electronic or timing controllers do not provide proportional modulation. These controllers tend to be inexpensive but not the best choice for optimum braking. It is important that your brake controller provide approximately 2 volts to the braking system when the brake pedal is first depressed and gradually increases the voltage to 12 volts as brake pedal pressure is increased. If the controller 'jumps' immediately to a high voltage output, even during a gradual stop, then the electric brakes will always be fully energized and will result in harsh brakes and potential wheel lockup." That gives you a concrete test of good behaviour: roughly 2 volts at first pedal touch, rising toward 12 volts as you brake harder. A third behaviour worth naming. Some controllers offer a user-controlled or fixed-output mode, which applies whatever level you dial in, immediately, regardless of vehicle braking. Redarc describes its version as "the trailer will brake to the level set by the control knob (regardless of how hard the vehicle brakes)" and recommends it "for off road or precision use." That is not the same thing as a time-based controller, and it is worth not confusing the two.

This catches people out at the dealership, and it is worth checking before you need it. From Ford's 2023 towing guide, reading the trailer brake controller row across its equipment tables: So a factory controller is standard on Ford's heavy-duty pickups and optional on the F-150. You can take delivery of a brand-new half-ton with a 7-way socket on the bumper and no controller behind the dash. If your truck lacks one, the options are an aftermarket controller — a well-regarded proportional unit is not expensive — or, on some vehicles, retrofitting the factory module. Many modern trucks are pre-wired with a connector behind the dash, which makes an aftermarket install a plug-in job rather than a splicing job. Check for that harness before quoting a shop. (These figures are Ford's for the 2023 model year. Availability changes year to year and differs by manufacturer, so check the towing guide for your own vehicle and year.)

A trailer brake signal travels on one specific conductor, and knowing which saves a great deal of guesswork when something does not work. Blue is the brake wire, and it is one of only two colours you can rely on. Dexter, describing where to measure system amperage, calls it "the BLUE wire of the controller, which is the output to the brakes." GM and Jayco agree, and Big Tex allows "black or blue". Beyond blue for brakes and white for ground, 7-way colour conventions are not consistent between manufacturers — the same colour can be the battery feed on one maker's trailer and the brake output on another's, and one current manual disagrees with itself between its own 4-way and 7-way pages. The hitch guide sets out the conflicting maps side by side. Identify circuits by position on the connector and confirm them with a test light or multimeter rather than trusting a colour chart. If the trailer's brakes do nothing, that circuit and the white ground are the first two things to test. A 4-way flat cannot operate trailer brakes. It carries ground, tail lights, and the two turn/stop circuits — four functions, no brake output and no 12 V line. A trailer with electric brakes needs the 7-way. One trap worth flagging: the 4-way flat uses a different colour convention from the 7-way blade. On a 4-way, brown is tail/running, yellow is left turn and green is right turn — which is not what those colours mean on the 7-way. Both conventions appear within the same owner's manuals a few pages apart. The four circuits that matter most for braking — blue, white, black and yellow — are consistent, but do not carry the lighting colours across between connector types.

Gain sets how much power the controller sends to the trailer brakes. Too little and the trailer pushes the tow vehicle; too much and the trailer's wheels lock. The procedure is a road test, not a number you can look up, because the right setting depends on trailer weight, brake condition and surface. Dexter notes that a manual override — the lever or slider that applies trailer brakes alone — "is required by law and should be fully understood for proper and safe operation", and it is the tool you use to set gain: at low speed on a clear, dry surface, apply the trailer brakes alone with the override and adjust until the trailer slows firmly without locking up. Our trailer brake gain calculator gives you a starting figure by trailer weight, axle count and controller type, and sets out the full road-test procedure that confirms it. Re-check the setting whenever the load changes materially — a gain that suits a loaded trailer is too aggressive for an empty one. The manual override has a second published use: before setting off, GM instructs owners to start the combination moving and manually apply the controller to check the trailer brakes work at all. That test belongs on every pre-trip walk-around. A third use is disputed, and the disagreement is between manufacturers. Redarc, a controller manufacturer, states its lever is "designed to be used when the trailer brakes need to be applied without the vehicle brakes, such as correcting trailer 'sway' whilst traveling." Ford's F-150 owner's manual warns against exactly that: > Only use the manual control lever for proper adjustment of the gain during trailer setup. Misuse, such as application during trailer sway, could cause instability of trailer or tow vehicle. Ford's reasoning is on the same page: the controller "does not provide anti-lock control of the trailer wheels," so a manual application can lock a trailer wheel — and a locked trailer wheel during a sway event is the opposite of helpful. GM permits the lever to "request additional trailer braking at any time" without naming sway. Follow the manual for your own vehicle. What every manufacturer source agrees on for sway is in what is trailer sway.

Not every braked trailer wants a controller. Surge or hydraulic brakes are self-actuating: a sliding coupler senses the trailer pushing against the tow vehicle under deceleration and uses that force to apply the trailer's hydraulic brakes. They need no electrical connection to the tow vehicle and no controller. They are common on boat trailers, largely because there is no wiring at the coupler to submerge at a launch ramp. The trade-offs are real in both directions. Electric brakes can be adjusted for the load, applied manually and set to a chosen gain. Surge brakes cannot — they respond only to how hard the trailer is pushing. One important interaction: surge brakes and weight distribution hitches can conflict. Andersen Hitches states that "as with all other Weight Distribution units, you cannot use the Andersen WD Hitch with surge brakes. The forward pressure of the weight distribution leverage will permanently engage the surge brakes." That is Andersen characterising the whole category, and some chain-style systems are used with surge brakes under specific setups — so check the guidance for your own hitch rather than assuming. If you tow a surge-braked boat trailer and are considering weight distribution, resolve that question first. See do I need a weight distribution hitch.

A short diagnostic order, cheapest checks first. 1. Does the controller see the trailer? Most display an error or refuse to arm when they detect no trailer brake circuit. That points at the connector, the blue wire or the ground. 2. Check the ground. A poor white-wire ground is the most common cause of erratic or absent trailer braking, and it produces symptoms that look like a failed controller. 3. Test the blue circuit at the socket. With the manual override applied you should see voltage on the brake pin. Nothing there means the fault is in the vehicle side or the controller. 4. Check the trailer's breakaway battery. A flat breakaway battery does not stop the brakes working, but a stuck or triggered breakaway switch will apply them constantly — see breakaway requirements. 5. Check the magnets and adjustment. Electric drum brakes need periodic adjustment, and worn magnets draw current without producing much braking. 6. Re-set the gain. If braking is weak rather than absent, gain set for a lighter load is the likeliest explanation. If braking is present but harsh or grabby, suspect the controller type before the brakes themselves — that is exactly the behaviour Dexter attributes to a non-proportional controller jumping straight to high voltage.
